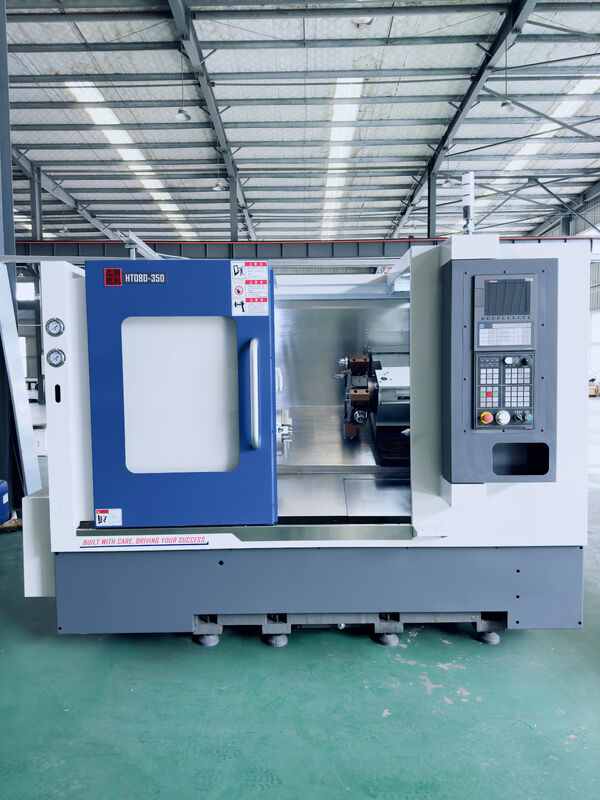

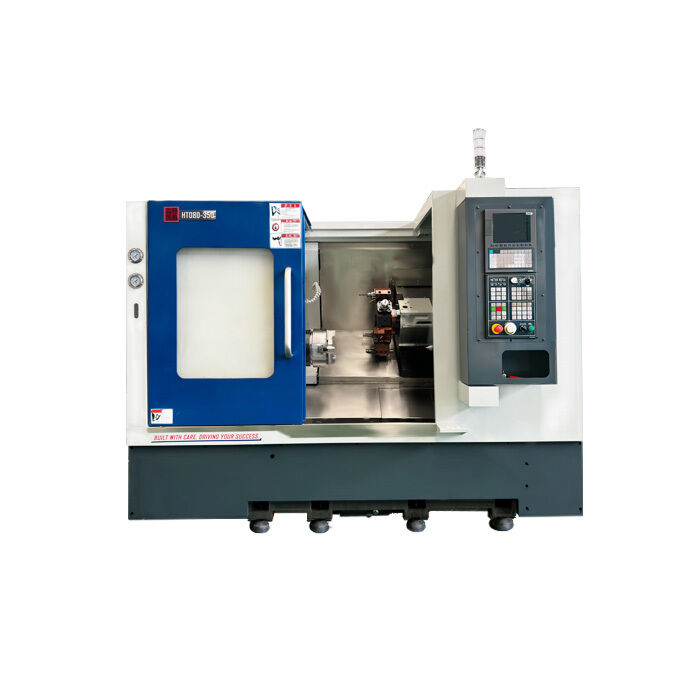

HT08-350 550 750 CNC Turning Center With 420mm Max Machining Diameter

HT08-350 550 750 CNC Turning Center With 420mm Max Machining Diameter
HT08-350 550 750 CNC Turning Center With 420mm Max Machining Diameter

Large Image :  HT08-350 550 750 CNC Turning Center With 420mm Max Machining Diameter

Product Details:
Place of Origin: China
Brand Name: ShangJie PM
Certification: CE ISO certification
Model Number: HT08-350/550/750
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

HT08-350 550 750 CNC Turning Center With 420mm Max Machining Diameter

Description
Bar Capacity: 50mm/60mm Bar Diameter: 52mm
Key Selling Points: High Productivity Spindle Bore Diameter: ø80
Model: XYZ-500 Main Motor Power: 11kw
Max Cutting Length: 550mm Z Axis Travel: 1578mm
Spindle Bore: 66mm Axis Travel: X-500 Mm, Z-1000 Mm
Structure: Slant Bed Lathe Type Of Tailstock: Hydraulic *LM
X Axis Travel: 400mm Spindle Speeds: 4500rpm
Tool Post Type: Hydraulic
Highlight:

HT08-350 CNC Turning Center

,

420mm CNC Turning Center

,

4500rpm 5 axis turning center

HT08-350/550/750 High-Rigidity CNC Turning Center with 420mm Max Machining Diameter and MT-5# Tailstock
ShangJie PM's HT Series CNC lathes feature high-rigidity slant-bed structures combined with powerful spindles and servo turrets. Designed for heavy-duty cutting and continuous batch production, the HT Series ensures stability and precision across complex turning tasks.
Key Features
  • Heavy-duty slant-bed lathe design with servo turret
  • Supports powerful spindle output and stable cutting performance
  • Designed for industrial-grade batch production and tough materials
  • Ideal for processing flanges, shafts, connectors, and other demanding metal components
  • Optimized for industries like energy equipment, machinery parts, and transportation hardware
HT08-350/550/750 Specifications
Machine Type HT08-350 HT08-550 HT08-750
Max. swing diameter 630mm 630mm 630mm
Max. machining diameter 420mm 420mm 420mm
Max. machining Length 350mm 550mm 750mm
Spindle nose A2-8 A2-8 A2-8
Spindle motor power 11/15 KW 11/15 KW 11/15 KW
Spindle bore 87mm 87mm 87mm
Max. spindle speed 3000r/min 3000r/min 3000r/min
X axis 230mm 230mm 230mm
Z axis 380mm 580mm 780mm
X axis rapid feed speed 30m/min 30m/min 30m/min
Z axis rapid feed speed 30m/min 30m/min 30m/min
X axis Max. torque of motor 34.5N.m 34.5N.m 34.5N.m
Z axis Max. torque of motor 45N.m 45N.m 45N.m
Chuck Size 10/12" 10/12" 10/12"
Servo Tool Turret 8/12 8/12 8/12
OD tool size 25x25mm 25x25mm 25x25mm
Tailstock travel MT-5# 250mm MT-5# 350mm MT-5# 400mm
Machine size (L x W x H) 2350x1470x1850mm 2600x1470x1850mm 2850x1470x1850mm
Standard weight 3100KG 4000KG 4700KG
Machine Characteristics
The HT series is a heavy-duty turret turning center, specifically designed for heavy cutting of large discs and shafts. The tailstock and sub-spindle rail parts are all integrally cast and have undergone reinforcement and optimization treatment. The extra-wide bed improves processing stability and is particularly suitable for turning and milling compound processing requirements.
The 45° inclined saddle, combined with large-sized roller linear guides and precision-grade ball screws, enables it to handle various processing tasks while maintaining long-term bed accuracy. Finite element analysis (FEM) was used to optimize the reinforcing ribs in the castings, achieving the best bed strength for heavy cutting and extended tool service life.
Expandable Functions

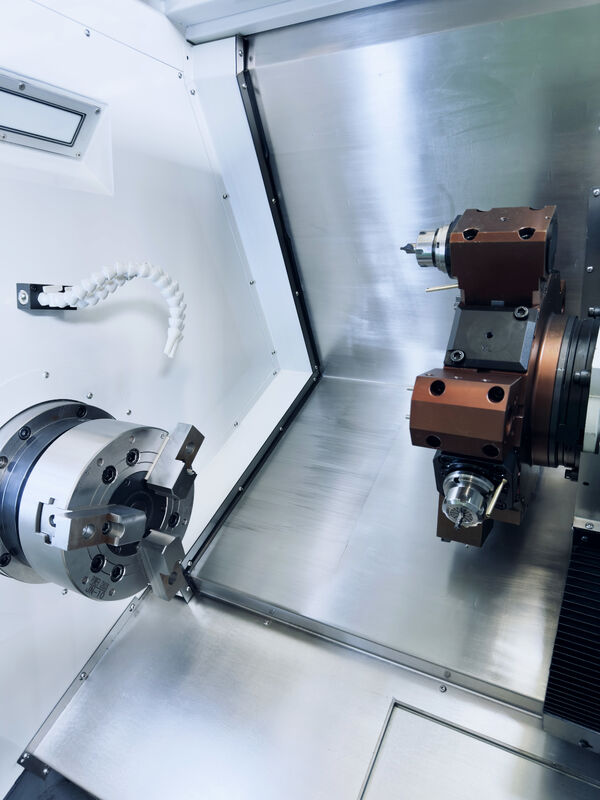

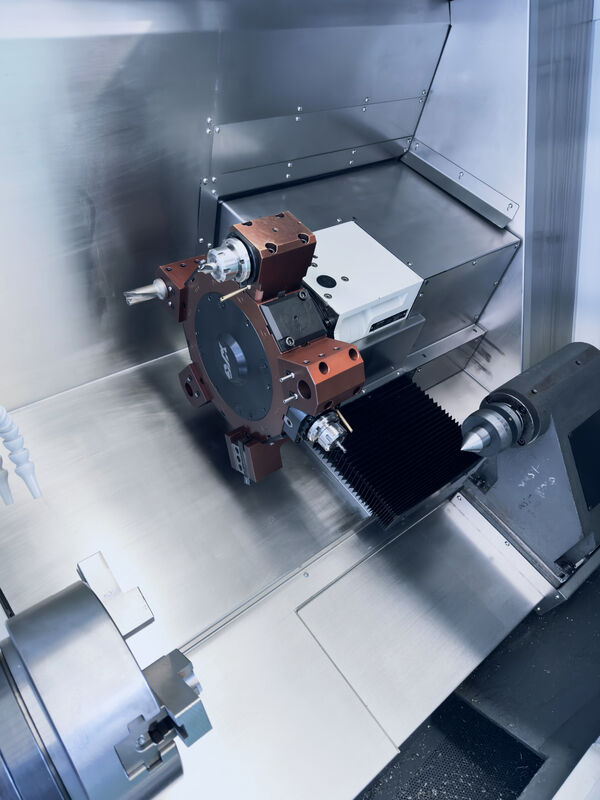

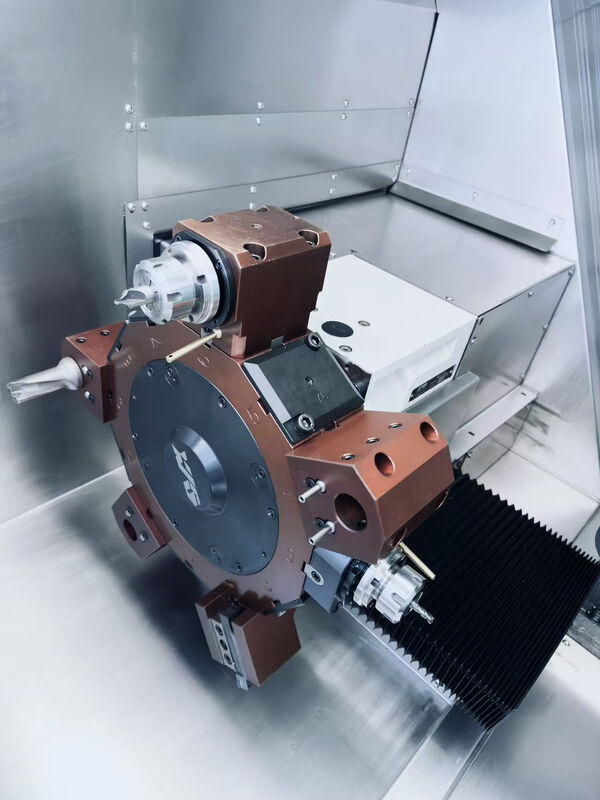

Turn-Mill Capability
The entire HT series can be equipped with a servo power tool turret to achieve turning and milling compound functions.
HT08-350 550 750 CNC Turning Center With 420mm Max Machining Diameter 0

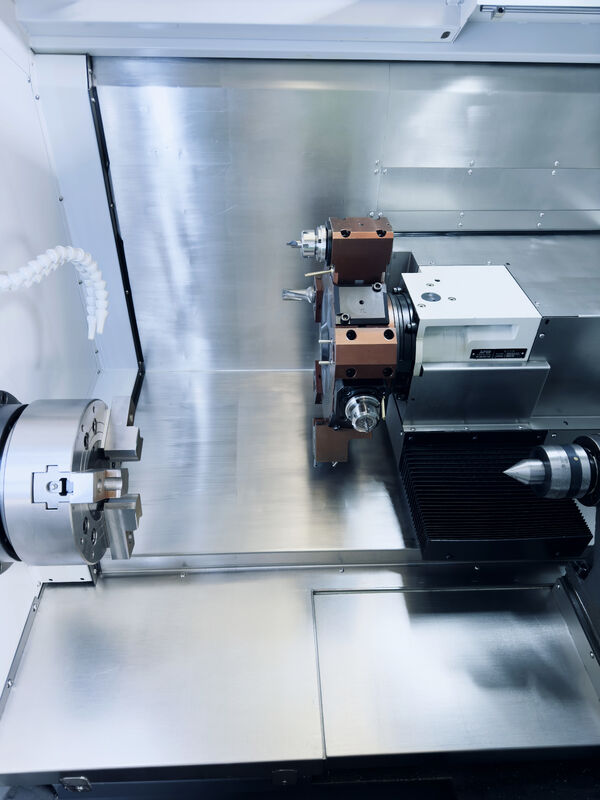

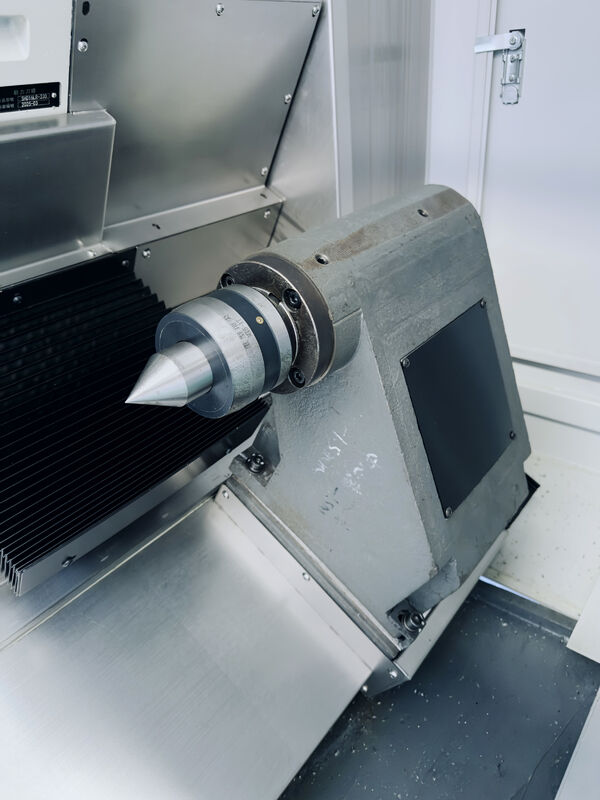

Programmable Tailstock
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing capital expenditure.
HT08-350 550 750 CNC Turning Center With 420mm Max Machining Diameter 1
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional CNC lathe manufacturer located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have 10 years of experience in the auto parts industry.
Q: Can you provide a product catalog?
A: Contact our business manager for the required product catalog via email.
Q: About the terms and conditions of payment.
A: We confirm payment terms (FOB, CIF, CNF) during quotation. For mass production, we typically require 30% advance payment with balance upon bill of lading, accepting T/T or L/C.
Q: Product after-sales service scope and service period?
A: We provide a one-year warranty and lifetime 24-hour technical support.
