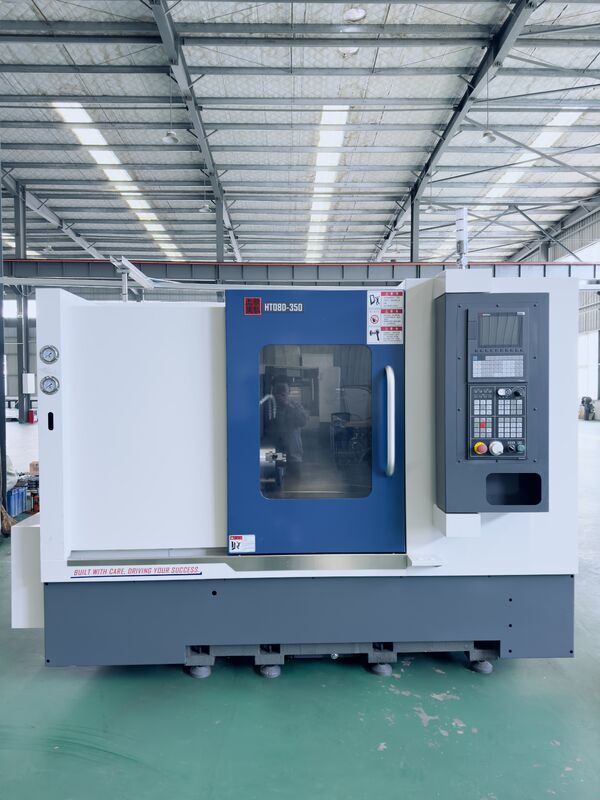

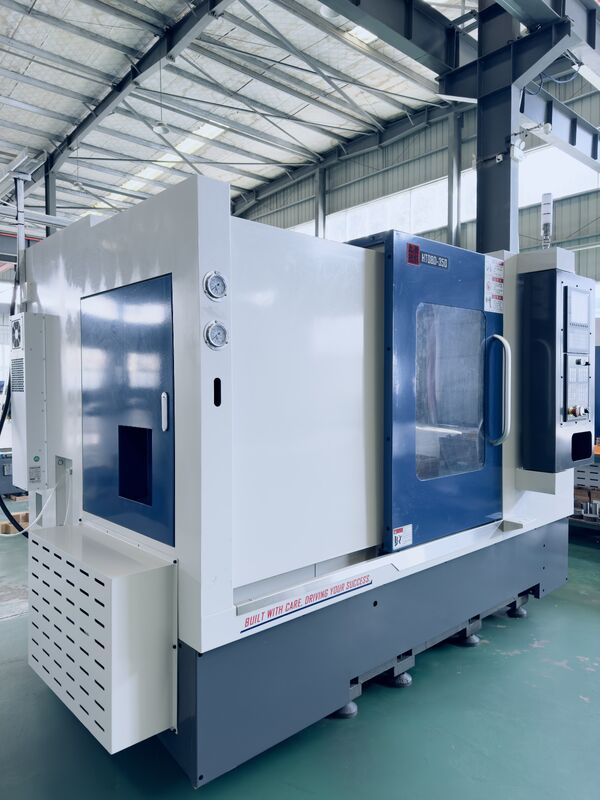

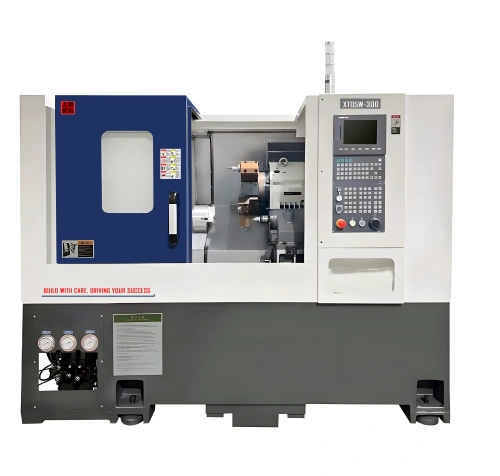

XT05ZY High-Precision CNC Turning Center with 5.5/7.5 KW Spindle Motor Power 48mm Spindle Bore and 25m/min Rapid Feed Speed
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings.
The XT Series combines stable casting, advanced CNC control, and thermal distortion resistance, ensuring consistent accuracy during continuous operation. It is widely used in sectors such as aerospace components, industrial automation parts, and mechanical equipment.
- Slant-bed structure with servo turret for high-efficiency turning
- Rigid body and precise feed system for stable long-cycle operation
- Built for complex, high-volume part production across industries
XT05ZY Model Specifications
XT/ZY Series — Y-axis tool turret, without tailstock. ZY series models use a motor-directly-driven gantry Y-axis tool turret, ensuring Y-axis positioning accuracy, milling rigidity, and long-term machine accuracy.
| Technical Specifications |
| Machine Type |
XT05ZY |
| Max. swing diameter |
500mm |
| Max. machining diameter |
260mm |
| Spindle nose |
A2-5 |
| Spindle motor power |
5.5/7.5 KW |
| Spindle bore |
48mm |
| Max. spindle speed |
6000r/min |
| Interpolation of ZY-axis travel |
±50mm |
| X axis |
230mm |
| Z axis |
380mm |
| X axis rapid feed speed |
25m/min |
| Z axis rapid feed speed |
25m/min |
| Chuck Size |
6" |
| Servo Tool Turret |
12 |
| OD tool size |
20x20mm |
| Machine size (L x W x H) |
1850x1470x1750mm |
| Standard weight |
2800KG |
Expandable Functions
Fully enclosed stainless steel inner protective layout. The entire series employs a fully-enclosed stainless steel inner protective sheet metal design. Its scientific layout, precision engineering, and superior sealing ensure reliable waterproof and oil-resistant performance during operation.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
