PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

HT300 grade cast iron CNC Gang Tool Lathe

8 in chuck CNC Turning Center

200mm X-axis travel Flat Bed Lathe

Place of Origin:

China

Brand Name:

ShangJie PM

Certification:

CE ISO certification

Document:

CNC Turning Center.pdf

Chat Now
Request A Quote
PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder
Product Details
Structure:
Slant Bed Lathe
Chuck:
8 In
Marketing Type:
Ordinary Product
X-Axis Travel:
200mm
Machinery Test Report:
Provided
Milling Head:
(side)4 (nose)4
Tool Holder Size:
25x25mm
Spindle Nose:
A2-5
Port:
Any Port In China
Spindle Bore Dia:
Φ56mm
Year:
New
Control System:
FANUC
Dimensions:
2000mm X 1500mm X 1800mm
Spindle Nose Type:
A2-6
Machine Weight:
5000kg
Highlight:

HT300 grade cast iron CNC Gang Tool Lathe

,

8 in chuck CNC Turning Center

,

200mm X-axis travel Flat Bed Lathe

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining online Video

PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining

Chat Now
Good price PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder online

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

Chat Now
Good price Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working online Video

Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working

Chat Now
Good price Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel online Video

Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel

Chat Now
CONTACT US
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
PT-Series CNC Gang Tool Flat Bed Lathe
The PT Series by ShangJie PM features compact, high-performance CNC lathes designed for precision turning in limited-space workshops or production lines. With gang-tool configurations and linear guideways, these machines provide excellent stability and fast tool change for high-efficiency small-part machining.
Key Features
  • Gang-tool layout reduces cycle time and tool switching delays
  • High-rigidity structure supports precision and repeatability
  • Ideal for small parts in high-volume production environments
  • Space-saving footprint with automation adaptability
  • Excellent for electronics, medical device manufacturing, and automotive parts
Construction Details
Casting Material: Machine bed is constructed with HT300 grade cast iron as a monolithic casting, processed through vibration aging and double tempering treatments to eliminate residual stresses. This ensures exceptional dimensional stability and long-term durability.
Bed Structure: The machine tool features a monoblock bed with a low center of gravity. Finite Element Analysis (FEM) optimizes the geometry and layout of reinforcing ribs in the cast components, maximizing bed rigidity for heavy-duty cutting operations.

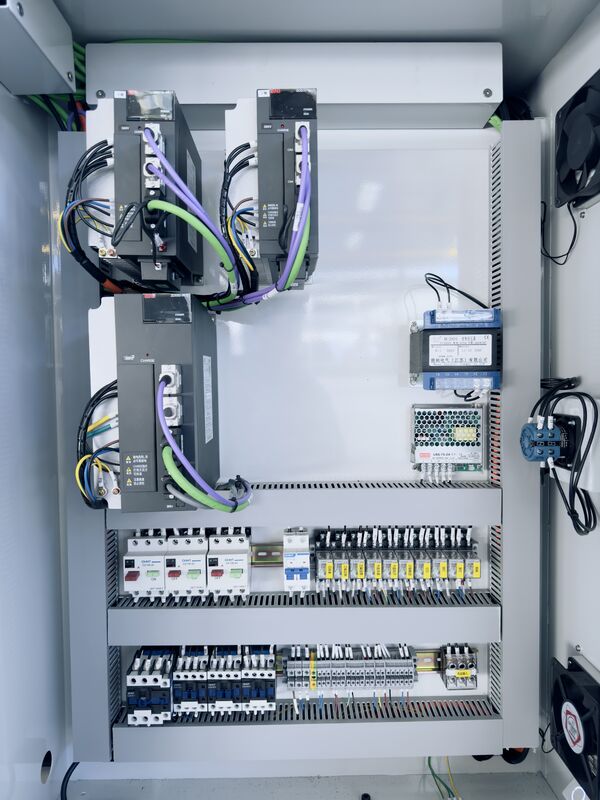

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder 0
Technical Specifications
Machine Type PT32
Max. swing diameter 410mm
Max. machining diameter on the saddle 120mm
Max. bar through diameter 28mm
Spindle nose A2-4
Spindle motor power 4KW
Spindle bore 38mm
Max. spindle speed 4000r/min
X axis travel 300mm
Z axis travel 270mm
X axis rapid feed speed 25m/min
Z axis rapid feed speed 25m/min
X axis Max. torque of motor 18N.m
Z axis Max. torque of motor 18N.m
Pneumatic clamping Spring collet
Manual chuck 5"
Hydraulic clamping Chuck Size 5"
Tool holder 4-station electric knife holder
OD tool size 16x16mm
Machine size (L x W x H) 1530x1320x1580mm
Standard weight 1430KG
Expandable Functions
Modular Power Head: Customized power head configurations can be added according to processing requirements, enabling drilling, milling, tapping, and other feature machining operations.

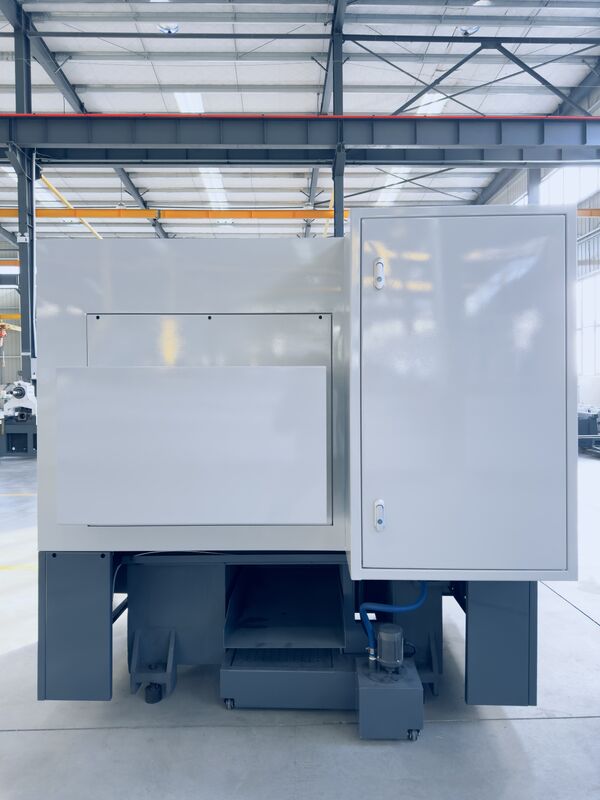

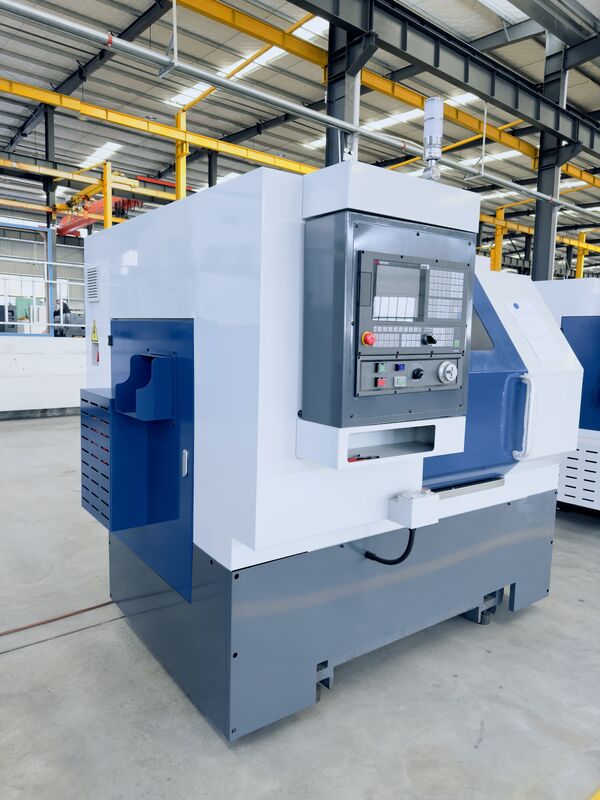

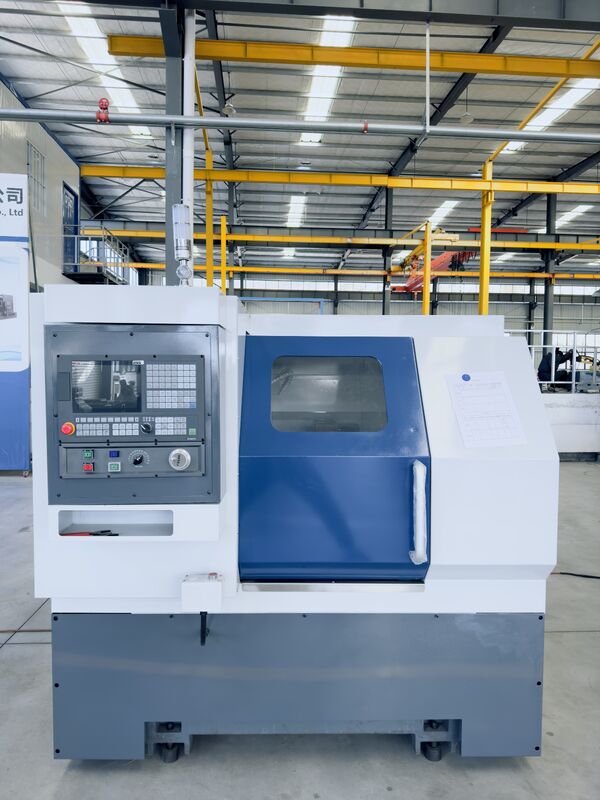

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder 1 PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder 2 PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder 3
Turn-Mill Capability: The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities for complex machining demands.

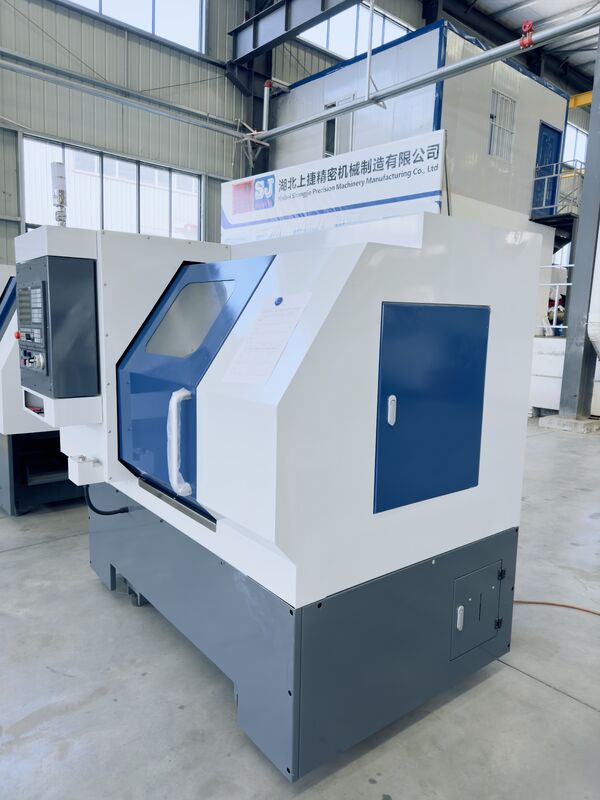

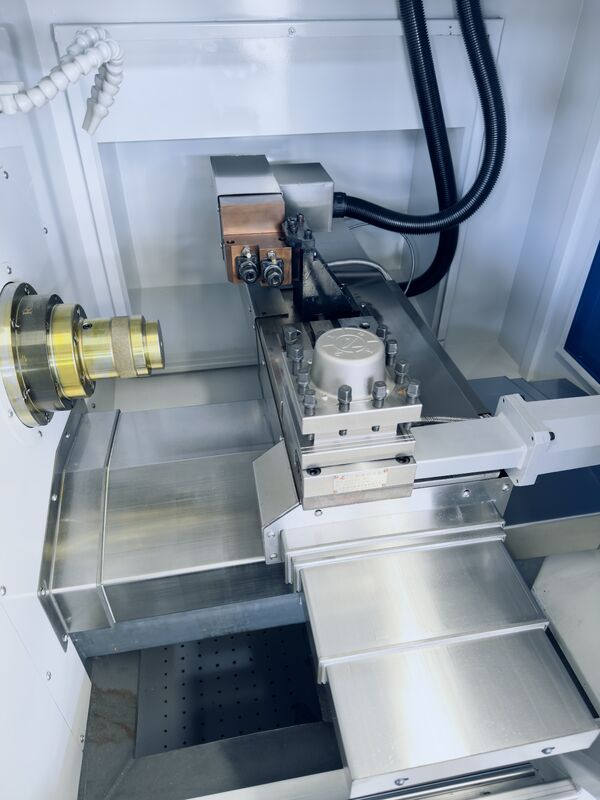

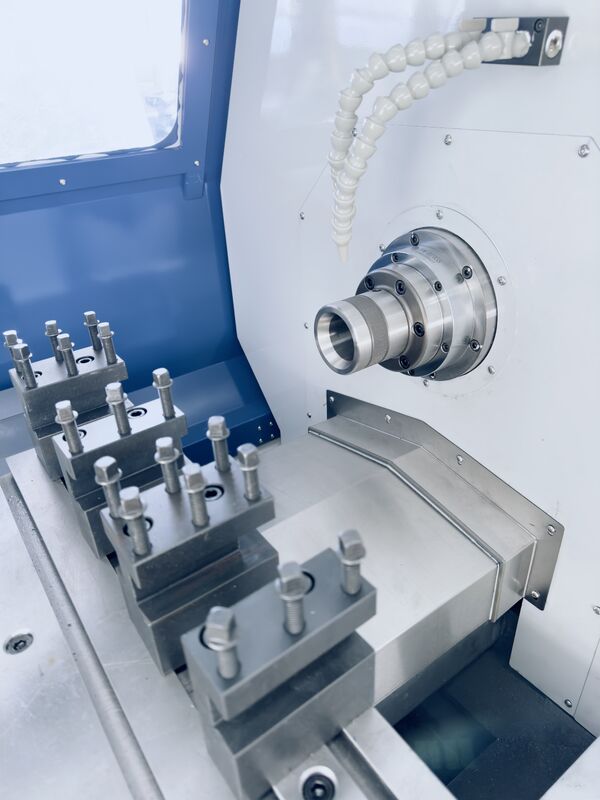

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder 4 PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder 5 PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder 6 PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder 7
Frequently Asked Questions
Manufacturer or trading company? Where is the company located?
We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
How long have you been involved in this market?
We have been engaged in the auto parts industry for 10 years.
Can you provide a product catalog?
Contact our business manager, we will send the product catalog you need to your mailbox.
About the terms and conditions of payment.
When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Product after-sales service scope and service period?
We offer a one-year warranty and 24-hour lifetime technical support.
